Meanwell Novastar system SMD 2121 HD LED curtain wall video wall, 1000x1000 cabinet size, 3840HZ
1. Product feature
1.color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, strict water proof testing by Ip65
4, according to environmental changes the brightness can be adjusted automatically for energy saving
5, special PVC kits are adopted to protect from corrosion according to coastal weather
6, according to environmental changes the brightness can be adjusted automatically for energy saving
7, auto power on/off, work unattended
♦ Product specification
| indoor SMD P3.91 |
| Lamp size | 2121 |
| Resolution/mm | 3.91 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 65410/m² |
| Module resolution | 64x64 |
| Module size/mm | 250*250 |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |

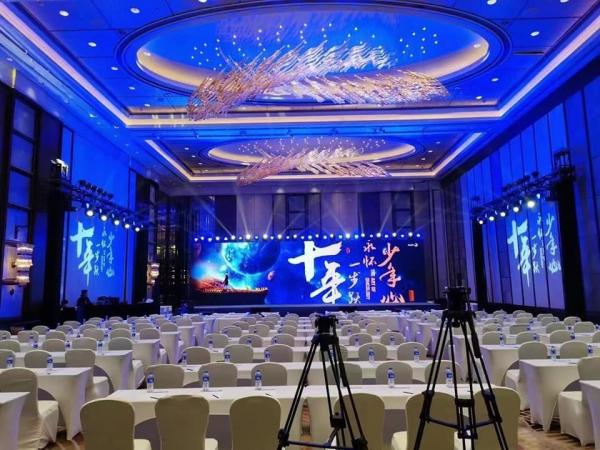

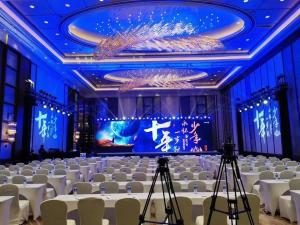

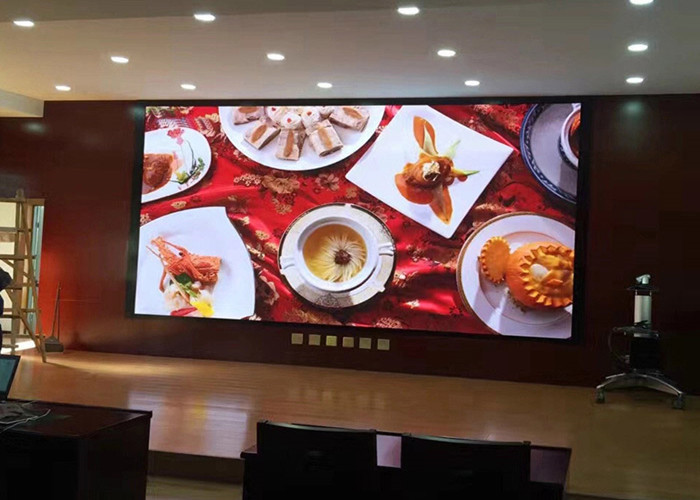

| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |

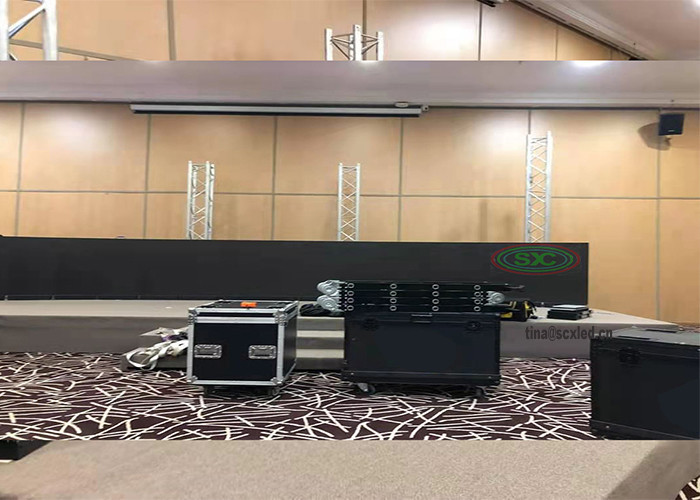

Cabinet
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your Pre-sale service and After-sale service?
A2: For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours on line. We can offer a set of solution for your project!
For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts.
Also, we can send engineers to your country if you need.
Q3: What’s your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Production time would be about 15-25 days according to your order quantity.
Q4: What's the control system?
A4: For synchronous control system: We use Nova, Linsn or Colorlight control system.
For asynchronous control system: We use Onbon or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: We have nearly 10-year experience in producing Led Display with good reputation in this industry.
We would do 24 hours ageing to promise 100% non-dead chips before shipment.
