Indoor P3.91 die-casting aluminum rental led display Super slim rental cabinet indoor rental led panel
Stage Led Screen Features
Adjustable Curve
Spice up your imaging landscape via convex or concave curved video walls with angles between 15° and -15° Angle adjustment is allowed for convenient for stage design. You can make 360 degree circle after joining the number of panels.
Fast Lock Feature
Fast lock on rear cover, making it quicker for installation and maintenance. This unique locking system allows fast and effortless vertical panel connection in a simple 3-step process: align, lift, click and lock
Structure Design Precision
the screen low heat, good heat-dissipation, ultra-quiet, standardized interface design. High brightness and adjustable, high contrast, stable and reliable, long life time, the best choice for stage rental purpose.
Lightweight Design
The lightweight and slim construction still offers the advantage, only 12 Kg/pcs, can be put up only by one hand. The cabinet adopts slim aluminum material, stable & reliable and high precision.
Stage Led Screen Specifications
| ITEMS | PARAMETERS |
| Pixel Pitch | P3.91mm |
| Physical Density | 65410 dots/m2 |
| Pixel Led | SMD 2121 Black Led |
| Cabinet Size | 500mmx500mm/500mmx1000mm |
| Cabinet Resolution Rate | 128 x 128/128 x 256 |
| Module Size | 250mmx250mm |
| Module Resolution Rate | 64x64 |
| Cabinet weight | 7.5kg |
| Cabinet Material | Aluminium Die Cast |
| Brightness | >1000-1200 cd/m2 |
| Refresh Frequency | >2000 Hz |
| Scan Rate | 1/16 Scan |
| View Angle | H-140°, V-140° |
| Minimum Viewing Distance | 4 meter |
| Input Voltage | AC110/220V, 50/60HZ |
| Power Consumption | Max-500kw/cabinet Ave-200kw/cabinet |
| Frame Frequency | 60 Hz/s |
| Controller System/Software | Novastar/Linsn |
| Working Environment | Indoor |
| Working Temperature | -20℃—50℃ |
| Storage Temperature | 10% - 90% |
| Rotation Mode | 15º Inside, 15º Outside |
| MTBF | 50000 Hours |
| Life Span | 100000 Hours |

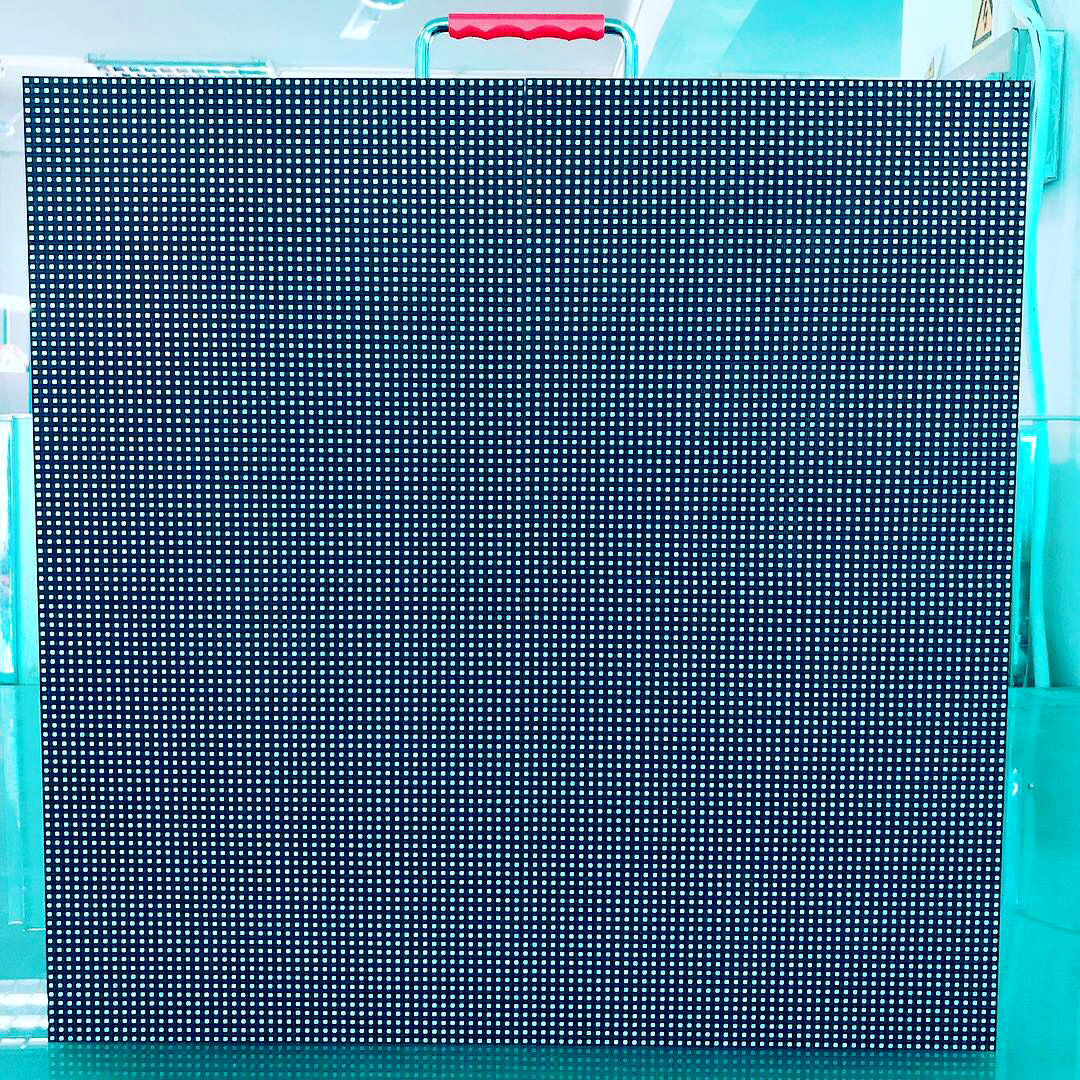

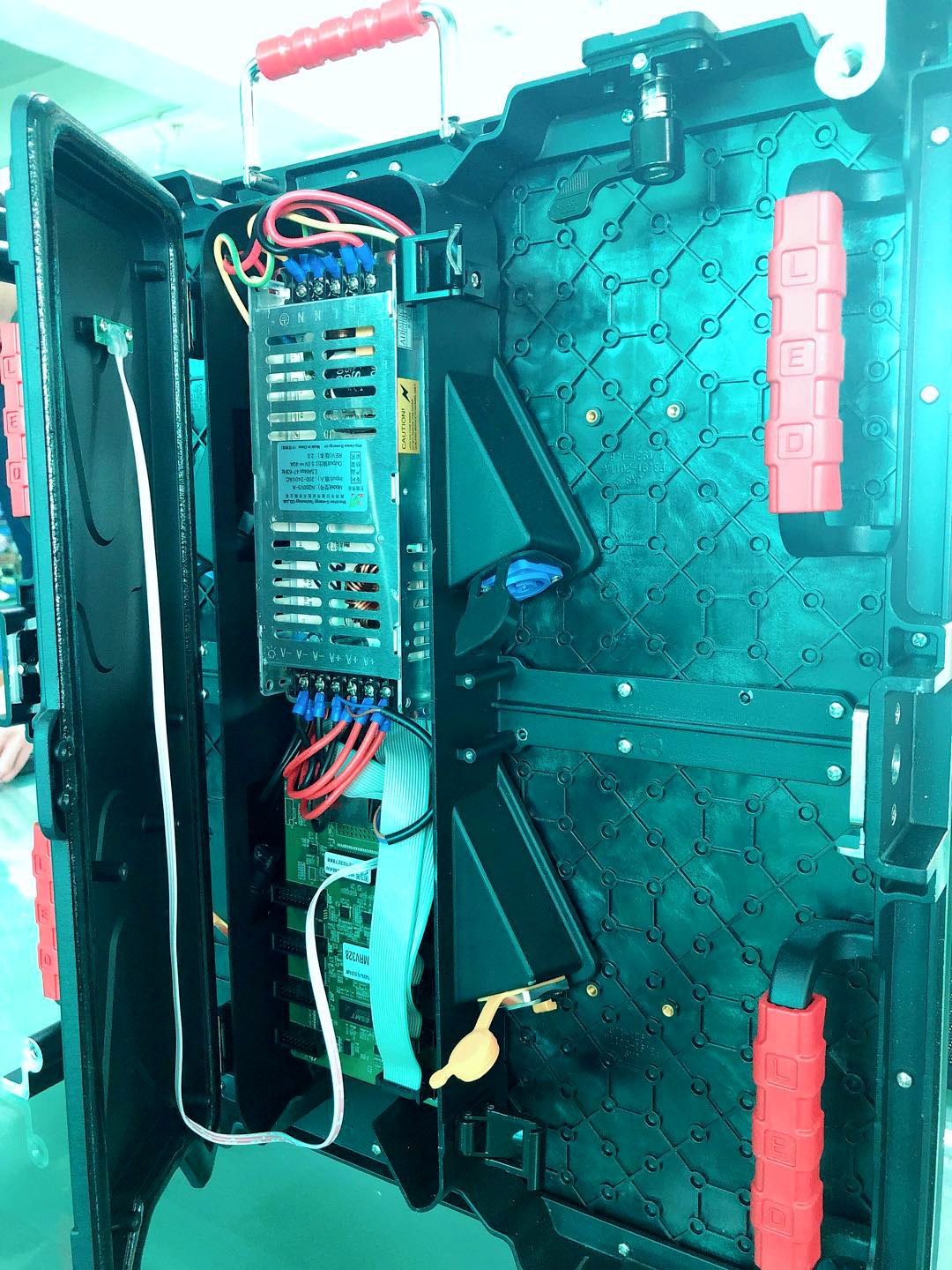

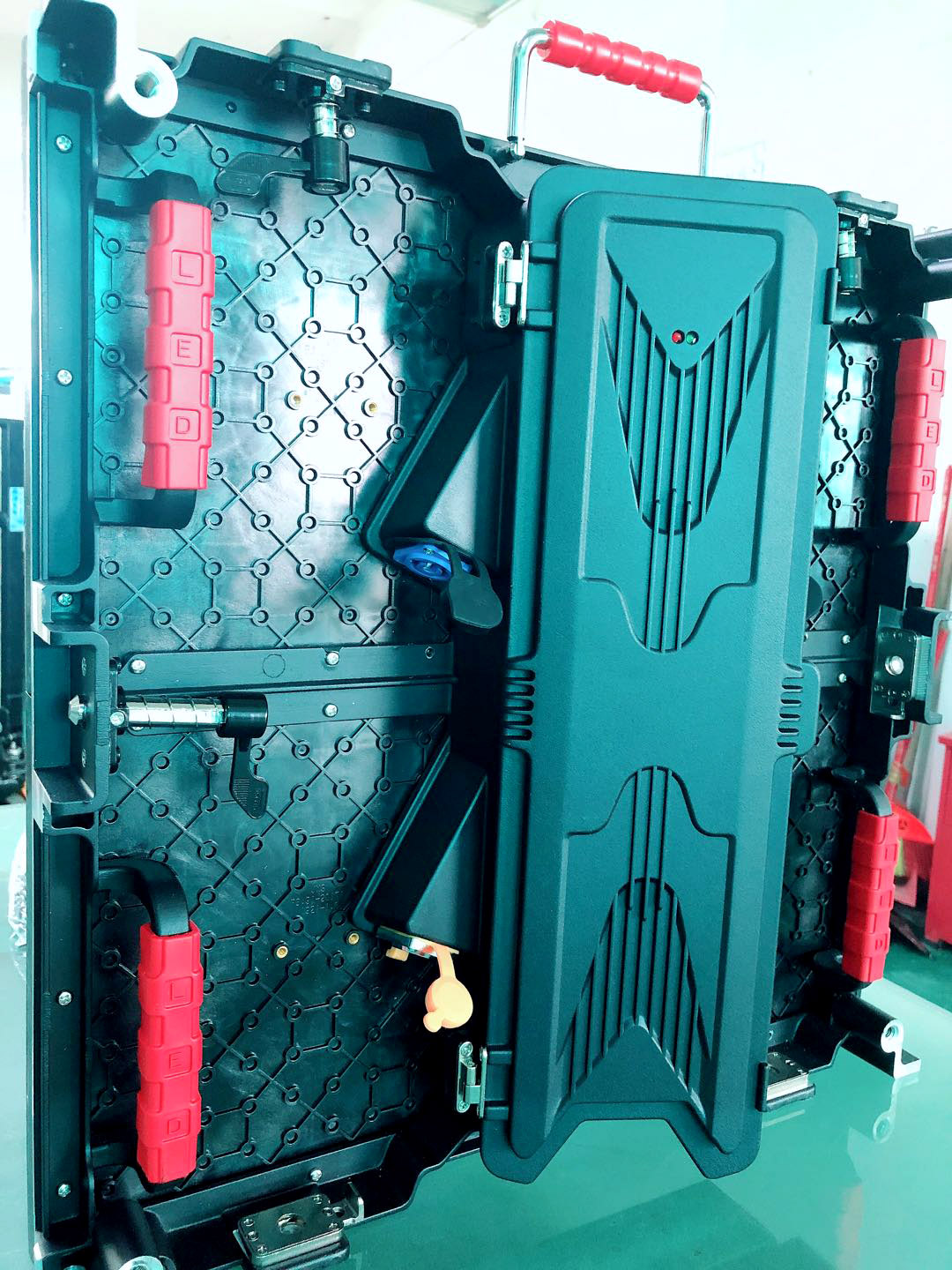

Stage Led Screen Cabinet

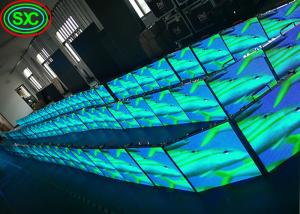

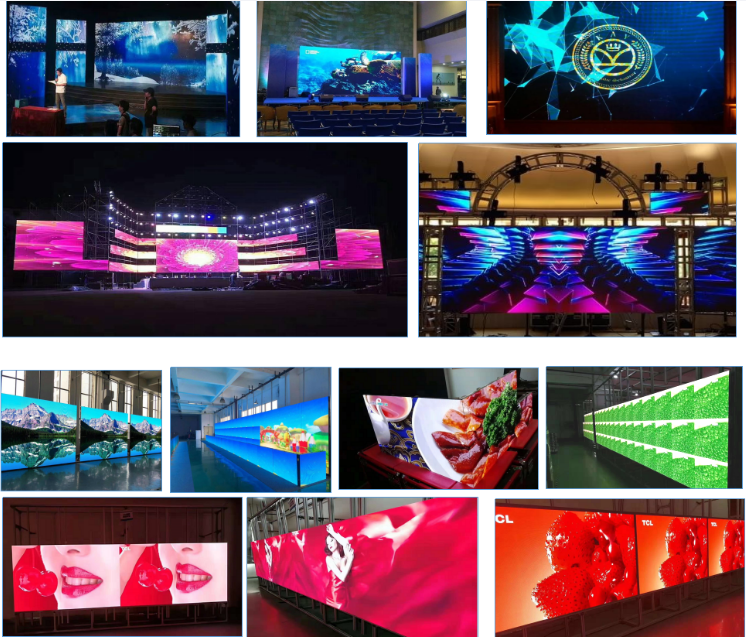

Stage Led Screen Projects
Our Service
Pre-sales
In order to build long term business relationship with you,Here belowing are what we will do for you :
1, Pictures and videos related to your peoject will be offered for your reference
2. Engineering cases will be shared with you
3. Related drawing share with you
4, Best led display cost and shipping cost offered for you
5. Check with previous customers that in your place about installation fee for you
After-Sales
1. 3 years warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days.
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality.
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
We're devoted to innovative high-end led display with over 15 years manufacturing experience, and we believe you could get a professional solution and best service from REISS. We're happy to serve you.
If you need led display screen,welcome to contact us,we can customize according to your needs.
For more questions about ShiXin Display Technology wholesale price full color smd outdoor/indoor led video display screen fixed with iron cabinet , please contact me of ShiXin Display Technology direct OEM manufacturer right now! Welcome any question!
